1. Technical Data

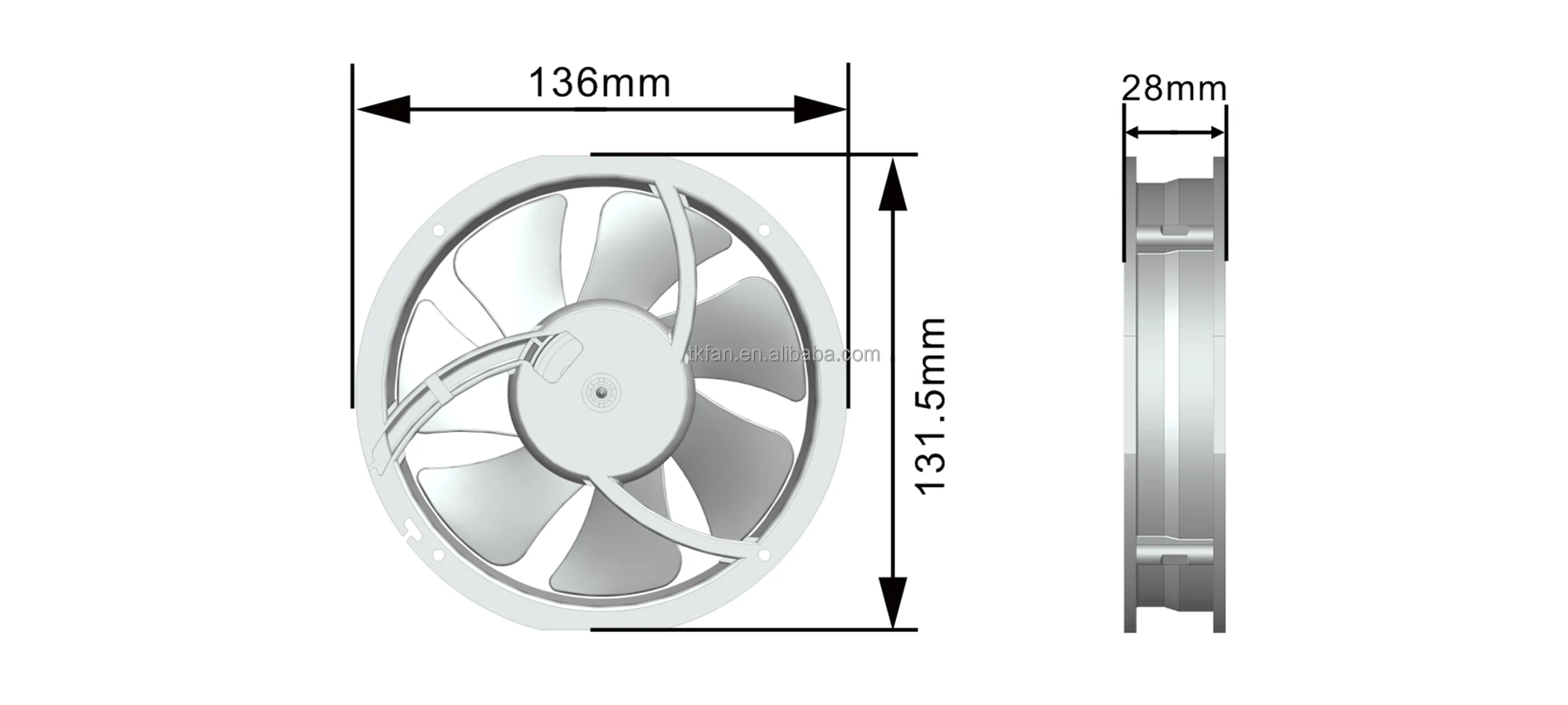

1.1  Fan structure drawing

13628 High Speed Fan

Remark:The model marked with red color is standard model, it in stock, and can be shipped immediately.

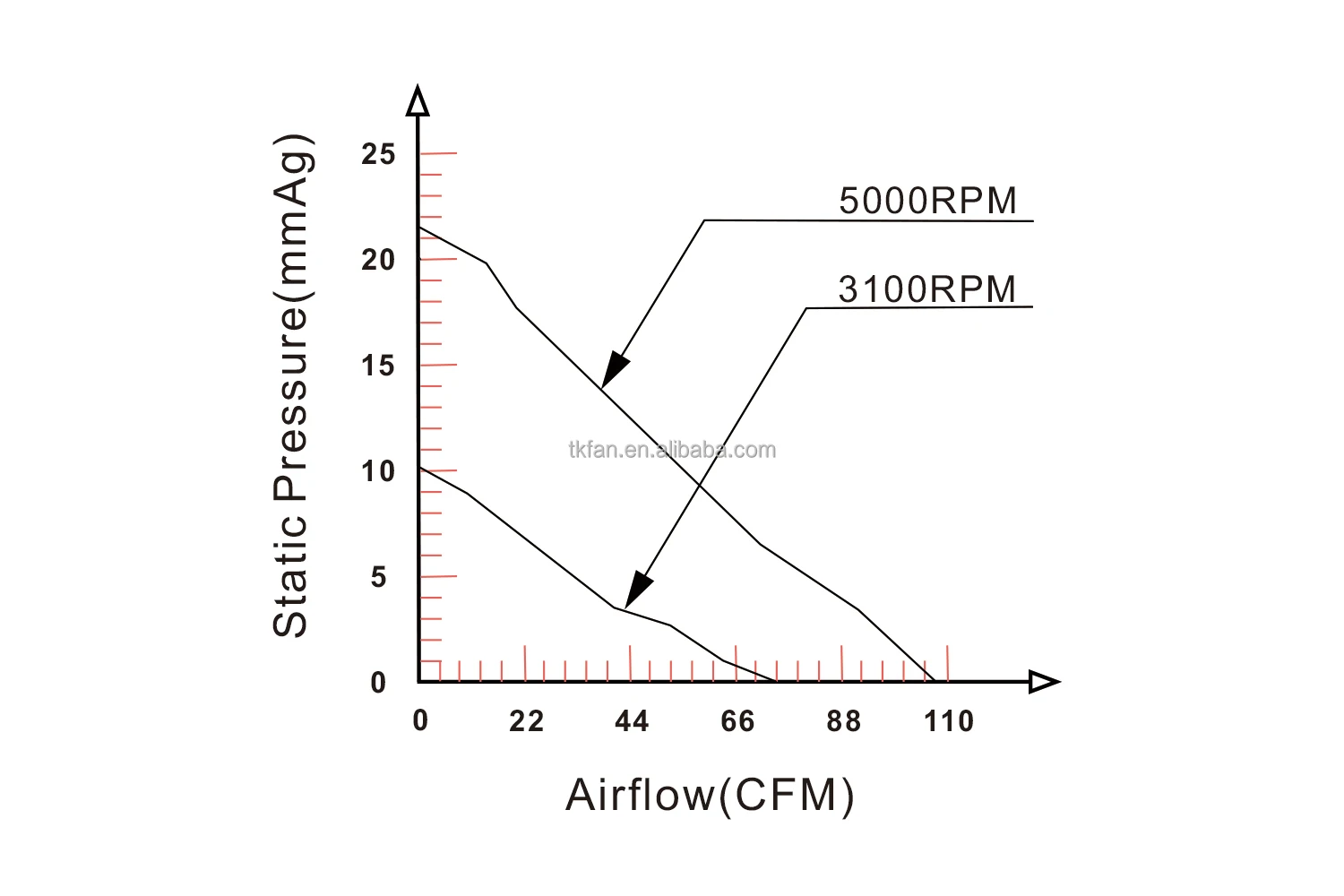

1.2  P-Q Curve and Data

1.3  Direct and reverse control scheme

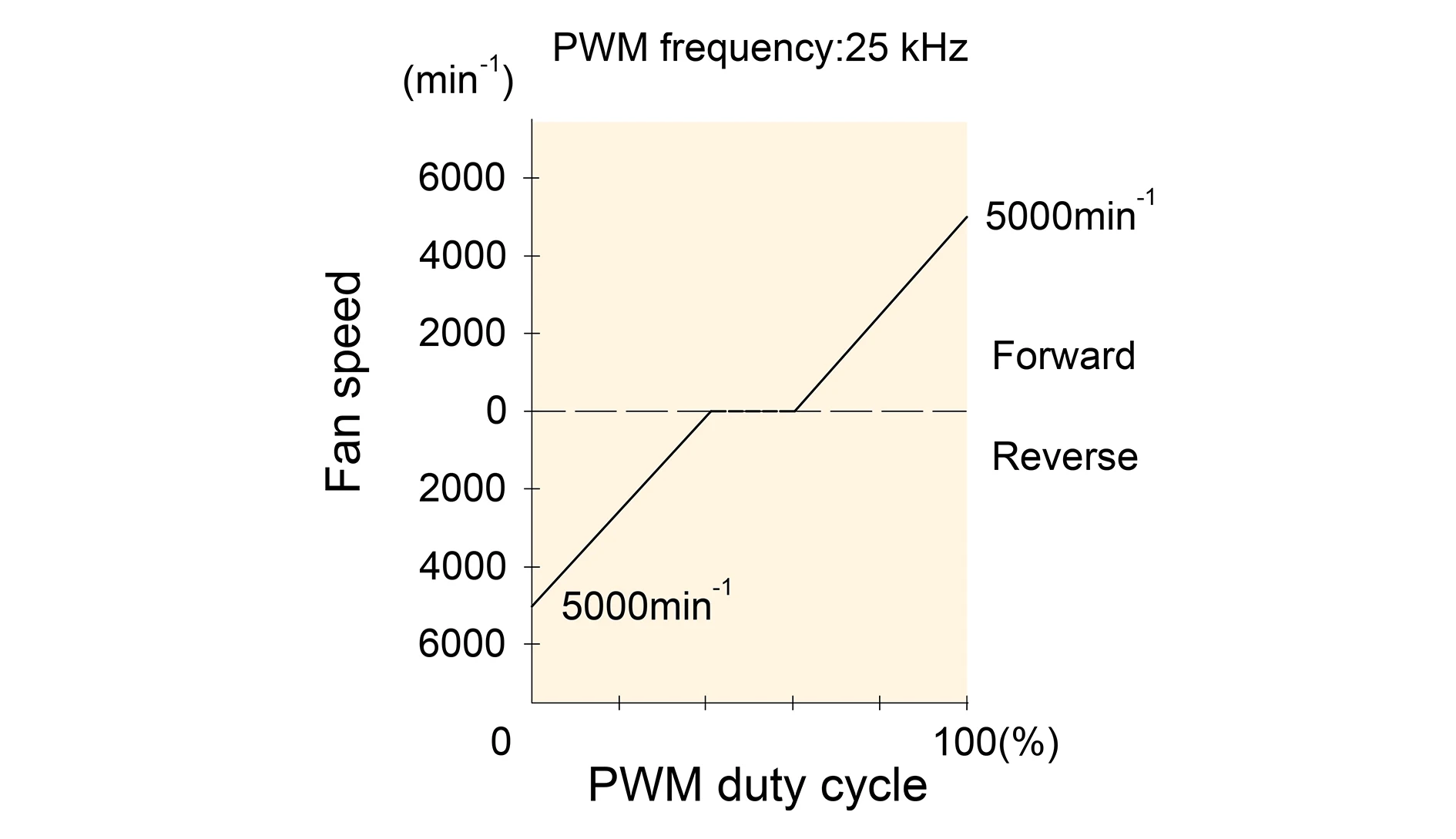

1.4  PWM (duty cycle control) Introduction

With this function,the speed can be controlled by applying a pulse width modulated signal whose frequency maybe in the range of 25k Hz~30kHz.High voltage means 3~10V.Low voltage means 0~0.8V.Normally two kinds “Speed Vs duty cycle curve” are used.

2. Products Description

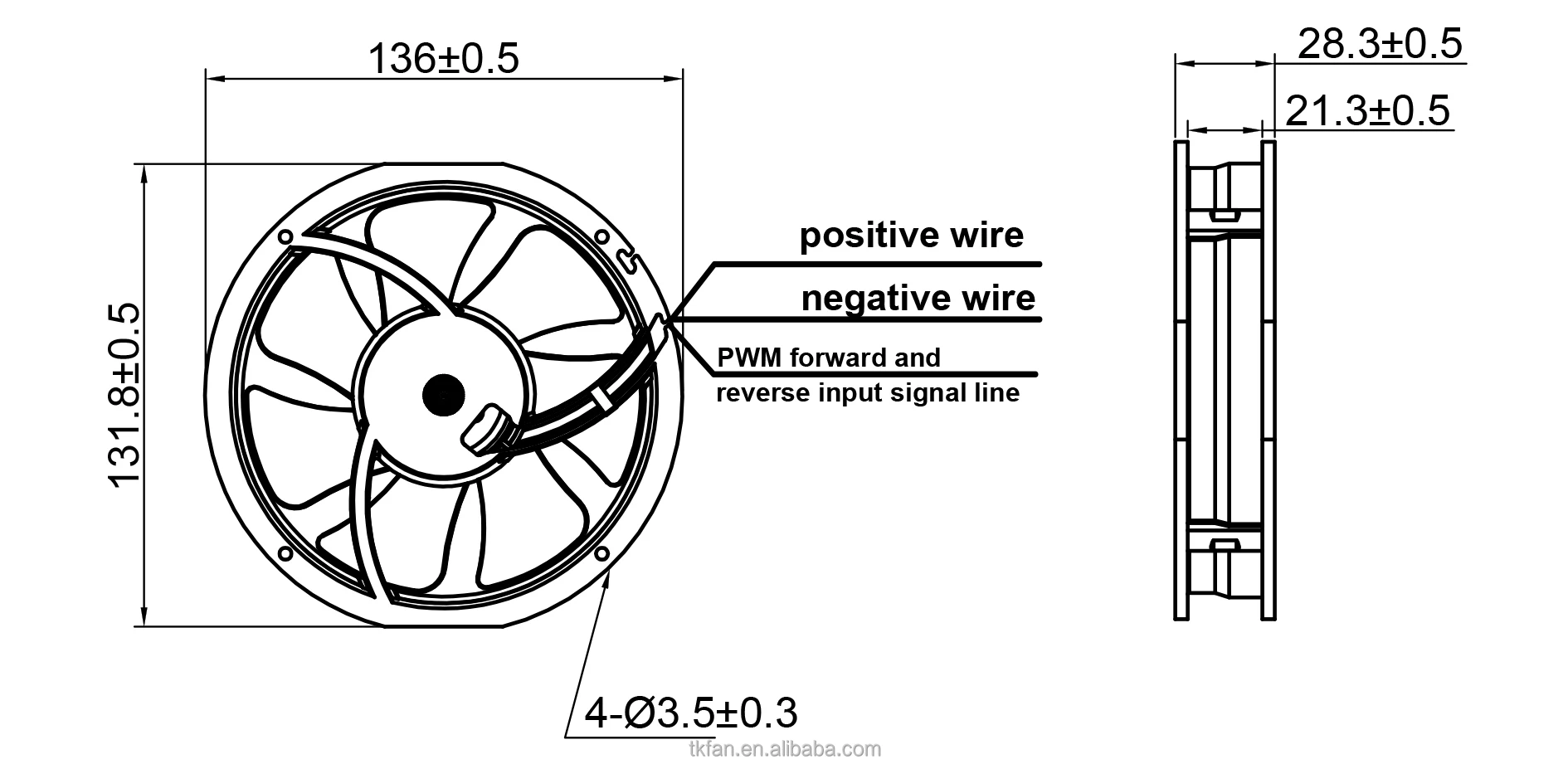

2.1  Dimenaional Drawing

2.2  Air flow diagram-Examples
