Air blower 18*4mm

  • Update time：  2025-10-23
  • click count：  Statistics clicks185次
  • Contact Information：  +86-0755-23126453
  • Company Address：  Floor 5, Building C, Jinxiongda Industry Park, Guanlan Street, Shenzhen City, P.R. China

1. Technical Data

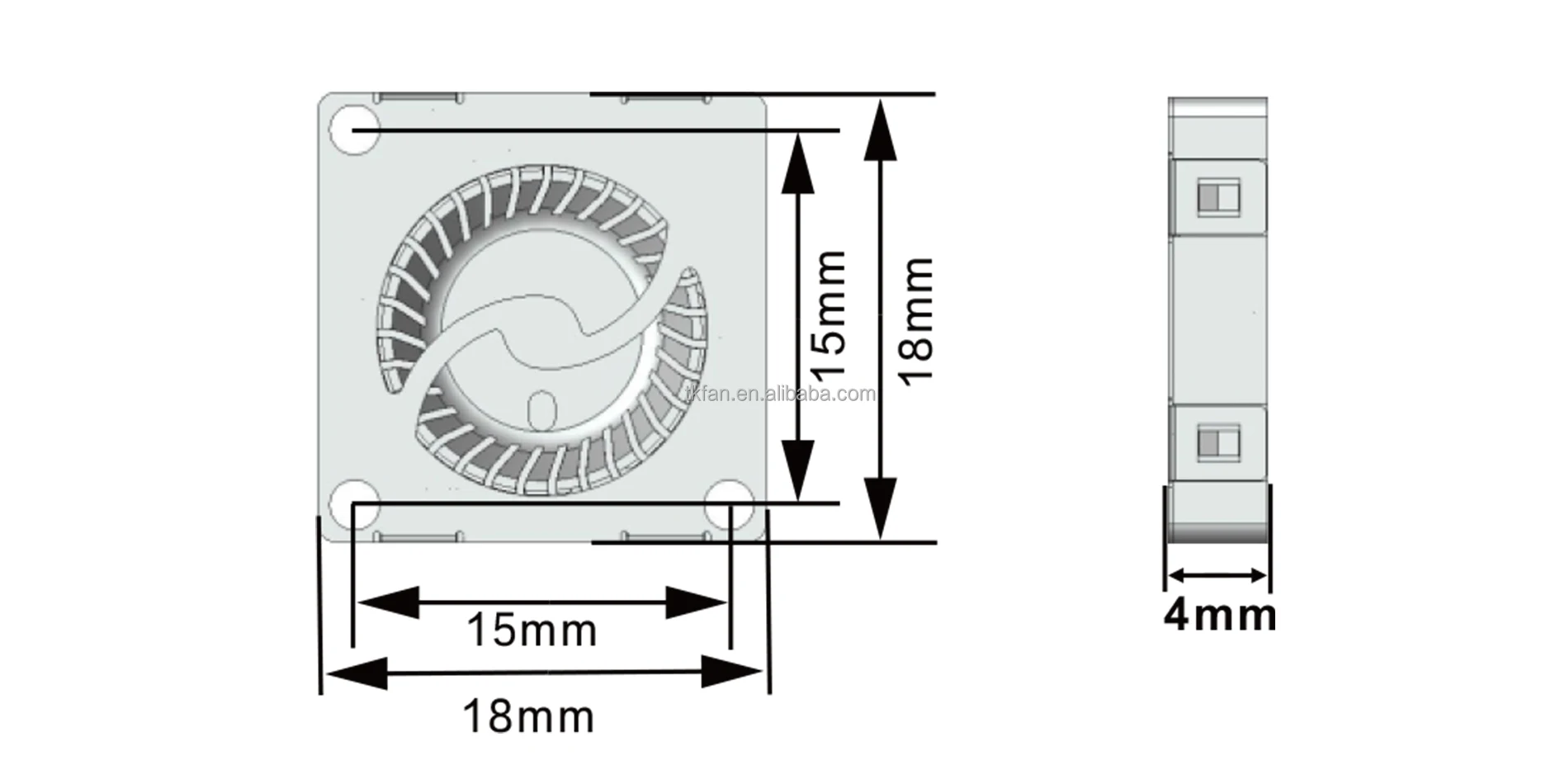

1.1  Fan structure drawing



1804 Micro Blower Fan

Model

Voltage

Current

Speed

Air Flow

Air Pressure

Noise

PART.NO.

VDC

Amp

R.P.M

CFM

mmH2O

dB-A

BA1804L33Y-A

3.3

0.03

10000

0.14

3.00

19.0

BA1804L05Y-A

5

0.04

13000

0.20

6.00

21.7

BA1804H05Y-A5
0.085200000.4
9.736.5

Remark:The model marked with red color is standard model, it in stock, and can be shipped immediately.

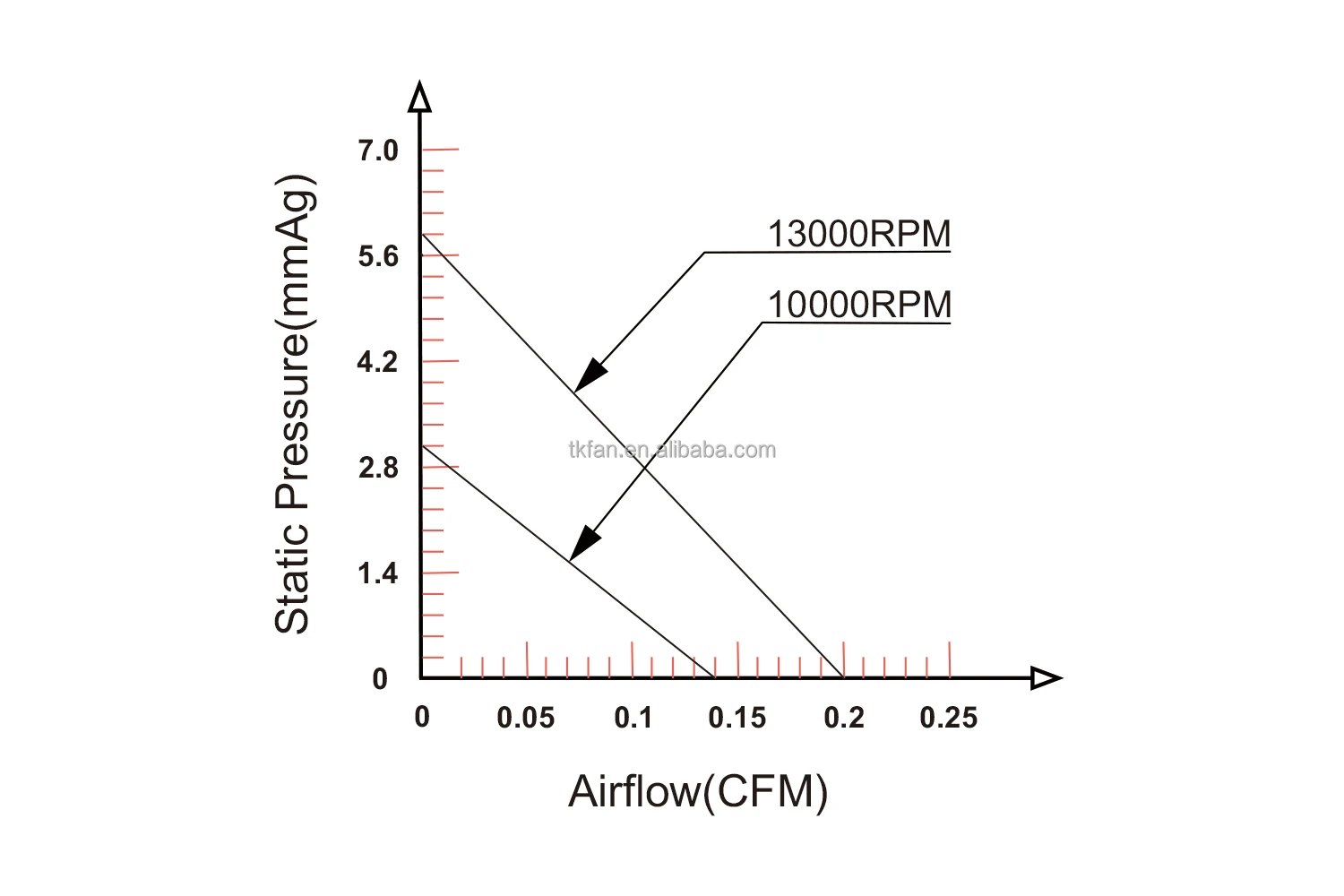

1.2  P-Q Curve and Data

2. Products Description

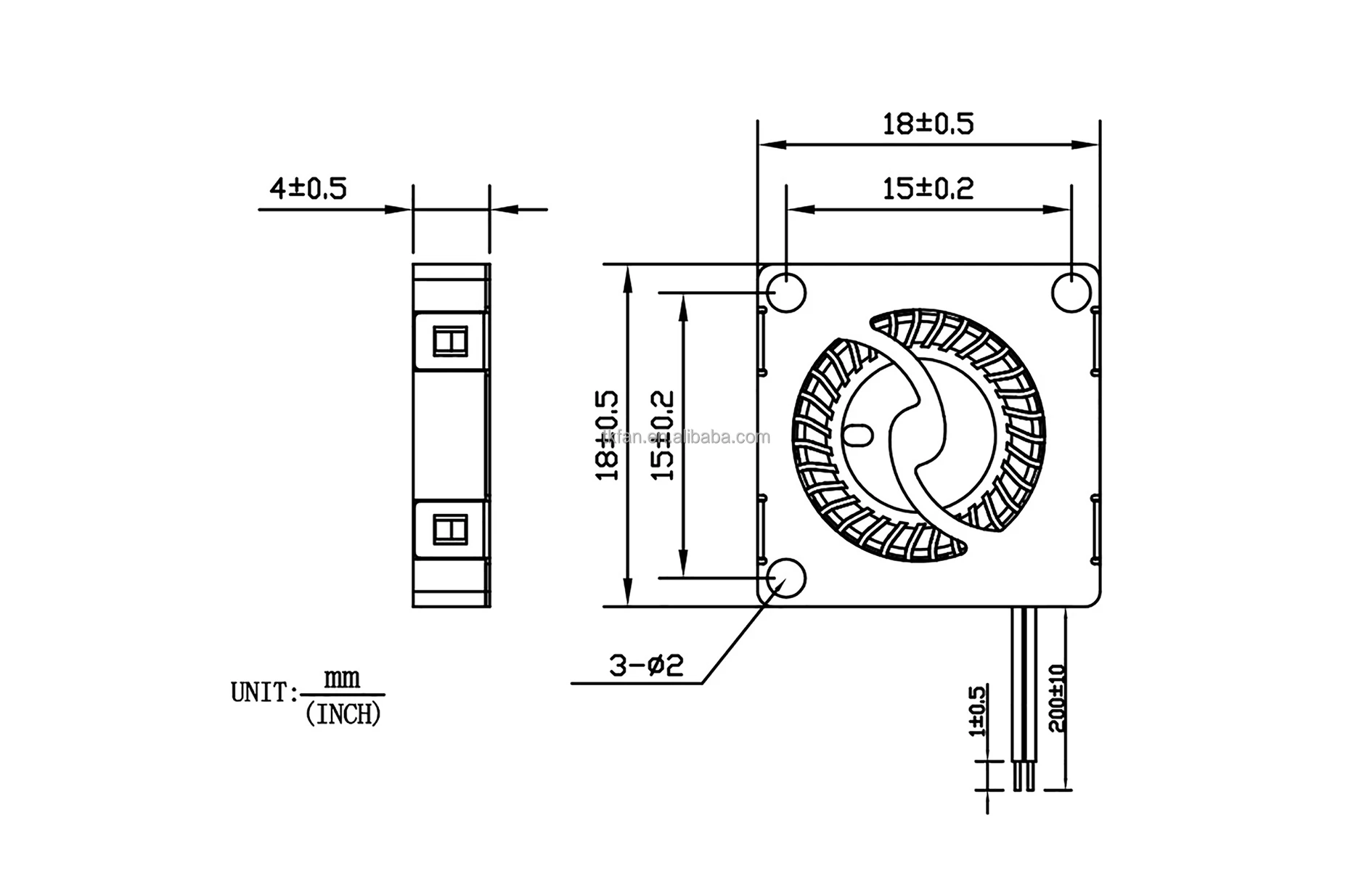

2.1  Dimenaional Drawing


2.2  Air flow diagram-Examples
